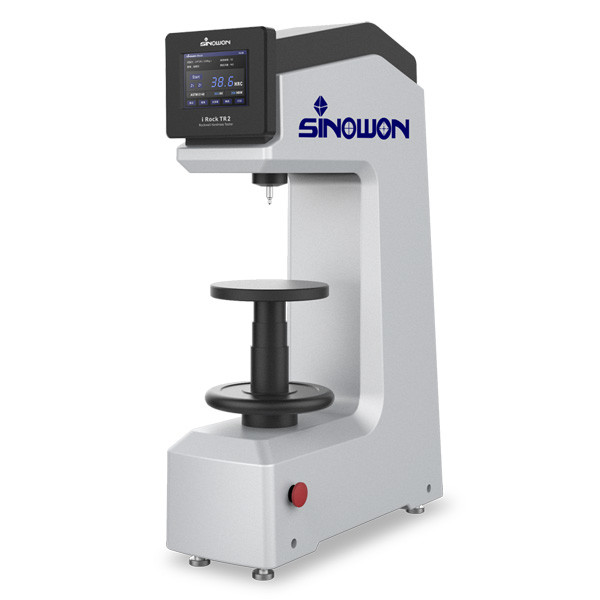

Heighten Digital Twin Rockwell Hardness Tester iRock-TR2
Features:
● Semi-automatic intelligent Digital Rockwell Hardness tester, you can automatically test the Rockwell hardness and surface Rockwell hardness measurement；
● Automatic variable load, automatic loading, automatic unloading, automatic conversion, automatic measurement；
● Friendly human-computer interaction,5.2“colorful LCD screen direct display test force,loading time,conversion value and indenter type etc；
● Automatically calculate and display the measured value, the maximum value, the minimum value, the average value and the hardness value deviation, the display shows the resolution 0.1HR；
● There are functions such as hardness upper and lower limit settings, tolerance alarms, data graph analysis, average and (single point) batch measurement modes；
● Software compensation function, the machine can be ± 3HR software compensation, no need to open the top cover for mechanical adjustment;
● With automatic hardness conversion function, according to ASTM E140 conversion, no need to check the complex hardness of the table；
● Multi-language features, can switch Chinese, English, German, Portuguese, Turkish, Czech, Korean and other languages；
● Built-in 2000 single data storage function and 1000 group packet data storage function, can view a single data and data analysis；
● Optional Bluetooth wireless printer to print the measurement data, no need to manually record and write test data.
Applications:
◆ Cemented Carbide
◆ Case-hardening Steel
◆ Copper Alloy
◆ Hardened and Tempered Steel
◆ Carburizing Steel
◆ Cast Steel
◆ Malleable Iron Castings
◆ Annealed Steel
◆ Hardened Steel
◆ Aluminium Alloy
◆ Soft Steel
◆ Bearing Steel
Specifications:
| Commodity | Heighten Digital Twin Rockwell Hardness Tester |
| Model | iRock TR2 |
| Code# | 811-360 |
| Preliminary Test Force | 3Kgf(29.4N);10Kgf(98.1N) |
| Total Test Force | 15Kgf(147.1N),30Kgf(294.3N),45Kgf(441.3N); 60Kgf(588.4N),100Kgf(980.7N),150Kgf(1471N) |
| Full Rockwell Scale | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,HRL, HRM, HRP, HRR, HRS, HRV; 15T,30T,45T;15T,30T,45T; 15N,30N,45N |
| Dwell Time | 1-60s adjustable |
| LCD Display Screen | 5.2 ”Color touch screen; Resolution: 640*480 |
| Resolution | 0.1HR |
| Loading Mode | Auto loading/dwell/unloading |
| Data Output | Optional wireless printer |
| Conversion Scale | HRC, HV, HBS, HBW, HK, HRA, HRD, HR15N, HR30N, HR45N, HS, HRF, HR15T, HR30T, HR45T, HRB |
| Languages | Chinese, English, German, Portuguese, Turkish, Czech, Korean |
| Max. Height of Specimen | 240mm |
| Throat | 170mm |
| Dimension | 620*210*900mm |
| Packing Dimension | 710*530*1000mm |
| Power | AC 220V/50Hz;AC110V/60Hz/200W |
| Net Weight /Gross | 120Kg /143Kg |
| Execution standard | GB/T230.2, JIS Z2245, EN-ISO 6508 , ASTME-18 |
