Portable Industrial Inspection Endoscope 160000 Pixel VH510-18-100

Name: Portable Industrial Inspection Endoscope 160000 Pixel VH51018100
Brand: SINOWON
Price: 1 USD

Buy cheap Portable Industrial Inspection Endoscope 160000 Pixel VH510-18-100 product

Brand Name : SINOWON

Model Number : VH510-18-100

Certification : CE

Place of Origin : Dongguan, China

MOQ : 1 Sets

Price : Can be discussed

Payment Terms : L/C, T/T

Supply Ability : 100 Sets/Month

Delivery Time : 30 work days

Packaging Details : Carton

Code# : 461-106

Direction : Direct view

View angle(θ) : 120°

DOF : 3mm~50mm

Pixel : 160000

Probe Diameter(D) : 1.8mm

Probe Articulating : 180°two way Articulating

Inserting tube Length : 1m

Contact Now

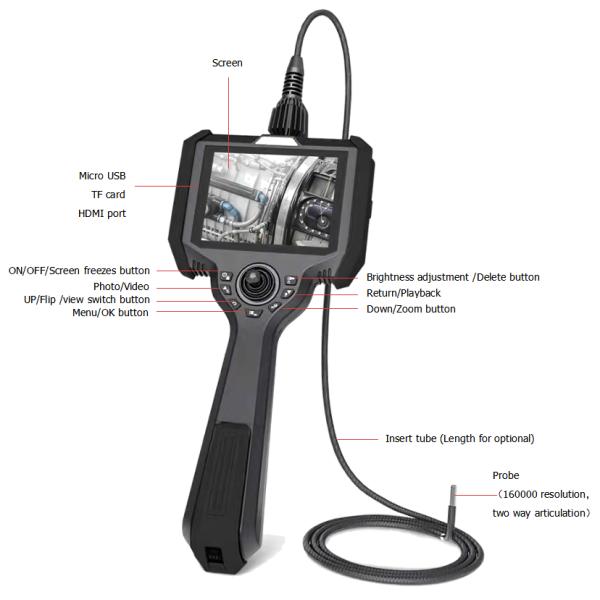

Portable Industrial Endoscope VH510-18-100

Product Introduction:

VH510 series is equipped with a number of detection functions, with advanced technology , and comprehensive functions , which assists the inspectors to complete the inspection work efficiently.

Portable Industrial Inspection Endoscope 160000 Pixel VH510-18-100

Specifications:

Commodity		Portable Industrial Endoscope VH510-18 Series
Model		VH510-18-100	VH510-18-200	VH510-18-300
Lens	Direction	Direct view
	View angle(θ)	120°
	DOF	3mm~50mm
	Pixel	160000
	Illuminating system	Rear high-power LED fiber optic transmission
Probe	Length(L)	5±0.5mm
	Diameter(D)	1.8mm
	Articulating	180°two way Articulating
	Bending Angle(ɑ)	160°±10°
	Brightness of Illumination	1m	1m<L≤2m
		≥10000Lux	≥8000Lux
	Working temperature	-20°C~70°C
Inserting tube	Length	1m	2m	3m
	Material	Flexible (tungsten braided tube)
Host	Dimension	35015559mm
	Display	5 inch industrial touch LCD screen
	Output port	HDMI video output,Micro USB,TF card slot
	Storage	32G
	Power	Special rechargeable lithium battery pack, online charging, battery life ≧4 hours
	IP grade	IP54
	Working temperature	-10℃～50℃
	Storage temperature	−20℃～60℃
	Relative humidity	Max 95%,No condensation
System	Operation System	Multifunctional operating system
	Operation method	Button navigation, dual camera and video buttons
	Support Function	With freeze, zoom, photo, flip, video playback, analog ruler functions
	File Format	Image:JPEG(JPG),Video:AVI
	Support Language	Chinese (Simplified and Traditional), French, English, German, Spanish, Italian, Japanese
Packing Case	Weight	3.9Kg
	LWH	479387155mm

VH510-18 (Direct View):
