120L Tank Salt Spray Testing Machine 50HZ Water Spray Test Chamber SST-200-NS

Brand Name : SQP

Model Number : SST-200-NS

Certification : CE

Place of Origin : Dongguan, China

MOQ : 1 Sets

Price : Can be discussed

Payment Terms : L/C, T/T

Supply Ability : 100 Sets/Month

Delivery Time : 15 work days

Packaging Details : Plywood

Code# : 221-151T

Interior Dimensions (W*D*H)mm : 2000*950*600mm

Exterior Dimensions (W*D*H)mm : 2700*1350*1600mm

Workroom Volume（L） : 1400

Capacity of salt water tank（L） : 120

Compressed air pressure : 6kgf/cm2

Contact Now

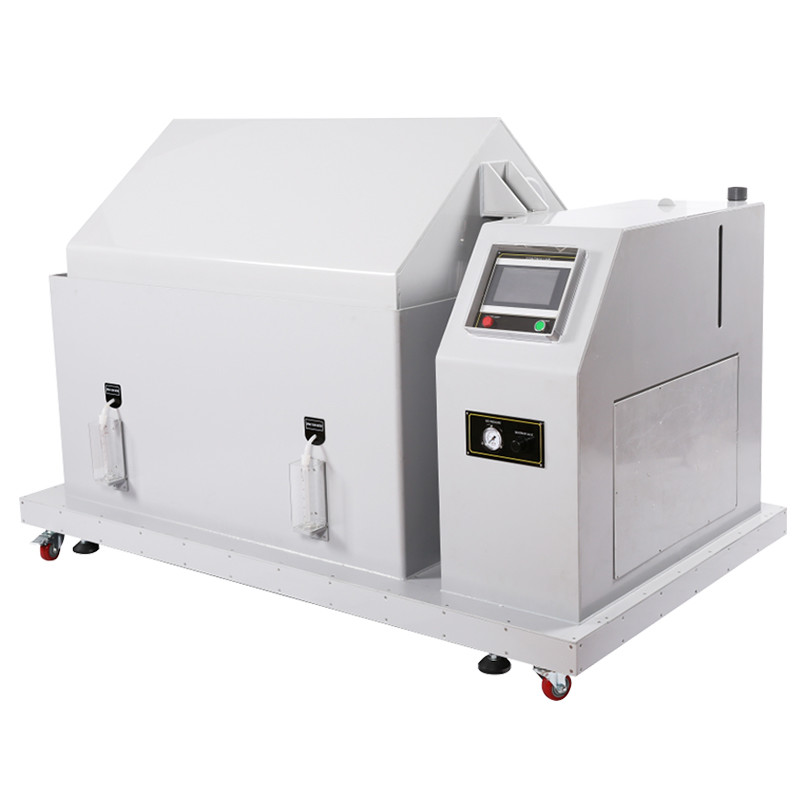

Salt Water Spray Test Chamber SST-200-NS



120L Tank Salt Spray Testing Machine 50HZ Water Spray Test Chamber SST-200-NS

120L Tank Salt Spray Testing Machine 50HZ Water Spray Test Chamber SST-200-NS

120L Tank Salt Spray Testing Machine 50HZ Water Spray Test Chamber SST-200-NS



Product Application:



120L Tank Salt Spray Testing Machine 50HZ Water Spray Test Chamber SST-200-NS



Product Introduction:

Salt spray is one of the "three-proofing" test equipment in the artificial climate environment.It tests the corrosion resistance of products for various materials, including surface treatments such as coating, electroplating, anodizing, spraying, and rust-proof oil. It can also be used to compare the process quality of similar protective layers and products.



Product Characteristic:

  • The entire machine is made of imported PP rigid plastic plates, with a solid and robust structure that is resistant to acid and alkali, high temperatures, and corrosion, and never ages. It is suitable for various testing requirements such as neutral salt spray , acetic acid test , copper acetate , and more.
  • The plastic precision nozzle and conical spray device are used to make the fog fall evenly and quickly, and the nozzle has a long service life and no crystallization.
  • Using LCD touch screen, it can be connected to a computer for remote monitoring and operation, with any language switching between Chinese and English.
  • With USB interface, you can plug in a U disk to download curves and historical data (can replace the recorder) (optional)
  • Spray time can be controlled internally, without additional time relay
  • The flow rate of the salt water and the pressure of the compressed air are regulated by flow meters and high-pressure valves to ensure uniform salt spray deposition.
  • The manual water addition system ensures automatic water replenishment when the water level is insufficient, ensuring uninterrupted testing.



Specifications:



General PP Model SST-90-BS SST-120-NS SST-160-NS SST-200-NS
Code# 221-121T 221-131T 221-141T 221-151T
Test Conditions NSS (neutral),CASS (copper accelerated), and more.
Economic Section ST-90-BS ST-120-NS ST-160-NS ST-200-NS
Code# 221-121 221-131 221-141 221-151
Test Conditions Applicable only to neutral and acidic salt spray tests

Interior Dimensions

(W*D*H)mm

 900*600*500 1200*850*500 1600*850*550 2000*950*600

Exterior Dimensions

(W*D*H)mm

 1460*910*1280 1900*1150*1500 2300*1150*1550 2700*1350*1600
Workroom Volume(L) 270 480 800 1440
Capacity of salt water tank(L) 25 90 90 120
Temperature in the laboratory (NSS ACSS) test temperature: 35℃±1℃/ (CASS) test temperature: 50℃±1℃
Temperature of saturated drum (NSS ACSS) test temperature: 47℃±1℃/ (CASS) test temperature: 63℃±1℃
Heating method thermal radiation heating
temperature of saline water 35℃±1℃ / 50℃±1℃
test fluid NSS: purified water + sodium chloride (PH6.5-7.2) / CASS: purified water + sodium chloride + copper chloride (PH3.0-3.2)
Compressed air pressure 2kgf/cm2 2kgf/cm2 6kgf/cm2 6kgf/cm2
Power supply AC 220V,1Ф, 50HZ
